Boring Machine

Available with us are Boring & Milling Machines, which are known for their strength, construction, durability, low maintenance cost, and ease of operation. These boring and milling machine serve variegated industrial applications, and are used to conduct efficient boring operations. This boring and milling machine line is available under the brand name "Nav Ashu Machine Tools" at industry leading prices. Our exhaustive range of Boring Machines comprises:

Technical Specifications:

Model No NAMT80 NAMT100 NAMT110 NAMT125 NAMT130 NAMT 150
Alloy Steel Work Spindle Hardened & Ground-Diameter 80 100 110 125 130 150
Morse Taper Number 5 6 6 6 6 6
Max. Longitudinal Movements of Working Spindle 510 510 510 600 600 650
Number of Spindle Speeds 9 9 9 9 9 9
Range of Spindle Speeds – R.P.M. 15 to 300 15 to 250 15 to 250 15 to 250 15 to 250 12 to 250
Longitudinal Work Spindle Feeds Nos. 9 9 9 9 9 9
Max. Height of the Spindle Axis from Table Surface 925 1000 1100 1200 1300 1500
Min. Height of the Spindle Axis from Table Surface 25 30 30 30 30 30
Dimensions of the Rotary Table 900*1105 1030*1375 1100*1450 1220*1675 1320*1775 1500*2000
Longitudinal table Traverse 1625 1775 1925 2050 2800 2950
Long. Table Traverse Feeds (Including one Rapid) 10 10 10 10 10 10
Transversal Table Travel Feeds (Including one Rapid) 10 10 10 10 10 10
Vertical Head Stock Travel Feeds (Including one Rapid) 4 4 4 10 10 10
Rotary Table Automatic Feeds (Including one Rapid) 10 10 10 10 10 10
Max. Cross Movement of the Table 1000 1100 1300 1500 2000 2000
Max. Distance between Stay Bearing & Facing Head 2400 2690 2800 2950 3600 3950
Facing Head Diameter 505 555 600 650 650 700
Weight Approx. in Kgs. 8500 9500 11000 16000 17000 19000

Horizontal Boring

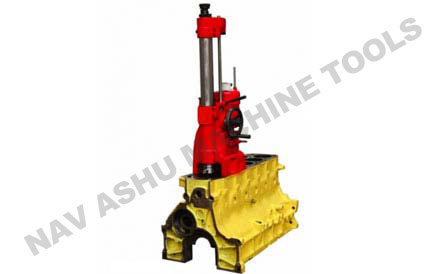

Cylindrical Re-boring
