Power Press Machine

Power press is a machine that exerts pressure to form shape and compress the work piece. It is made from steel, which contains a hydraulic cylinder. When cylindrical point of operation revolves, the wires are gripped and formed by bending. It is used in mechanic shops, basement shops and machine shops or garage. It can pressure in range of 1 to 30 tons which is depended on the expense and size. Multiple separate strands of wire are fed into the machine. Power press machines use a multi-piece metal part or tool. In the working of Power press India it includes crimping, folding, embossing, imprinting, stamping, rolling, casting, bending, forming, drawing, extruding, coining, swaging etc.

Technical Specifications:

Model No. NMT-3T NMT-5T NMT-10T NMT-20T NMT-30T NMT-50T NMT-150T NMT-200T NMT-250T
Tonnage 3 5 10 20 30 50 150 200 250
Crank Shaft
Diameter		 38 51 60 76 83 105 152 158 165
Stroke Length 25 25 25 51 63 76 152 158 165
Stroke
Adjustment		 6-25 6-25 6-25 13-51 13-63 13-76 13-152 13-158 13-165
Bed Size 203×152 205×178 381×255 508×305 558×356 750×520 965×685 1016×738 1016×778
Distance Bed
TO Ram		 127 153 205 280 292 406 495 519 544
Hole in Ram 19 25 25 32 38 38 57 63 63
Hole in Bed 51 63 76 83 89 127 191 216 229
Fly Wheel
Diameter		 330 405 435 550 660 810 1118 1150 1320
Motor H.P.
Required		 0.5 0.5 1 2 3 5 15 20 25
Length 625 940 1100 1240 1325 1575 1970 2190 2340
Width 610 915 1070 1220 1300 1510 1900 2050 2230
Height 1016 1370 1525 1830 1920 2420 3200 3250 3300
Weight Approx
Kgs.		 150 275 525 1020 1350 2750 6600 9000 11500

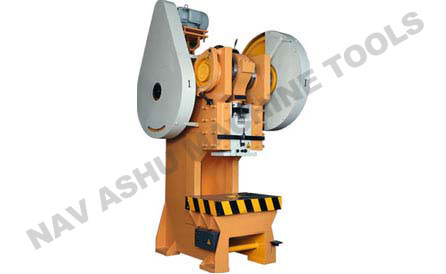

C-Type

H-type

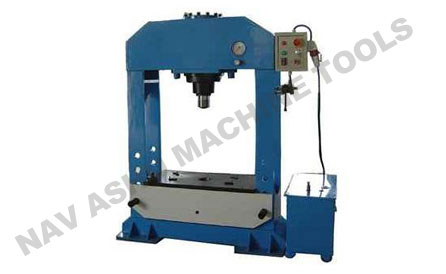

Hydraulic Press
