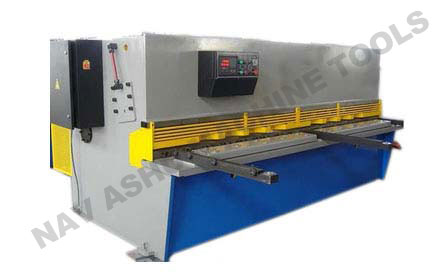

Shearing Machine

Our company is involved in manufacturing, supplying and exporting Shearing Machine Mechanical that comes with HCH Cr Blades. Fabricated with prime tested plates, the proffered high functionality shearing machines have four-edge cutting function blades and majoring scale for smaller pieces at front. Due to the supreme functionality, these mechanically operated machines are highly appreciated among our clients.

Technical Specifications:

Technical Data NMT-1 NMT-2 NMT-3 NMT-4
Shearing Length (mm) 1250 2500 3000 4000
Shearing Capacity (mm) 6 /8 /10/12/16 6 /8 /10/12/16 6 /8 /10/12/16 6 /8 /10/12/16
Depth of gap in Frame (mm) 175 175 175 175
Max. back gauge adjustment (mm) 25-750 25-1000 25-1000 25-1000
Size of blades (mm) 1270 x 75/100x 25 1270 x 75/100x 25 1524 x 75/100x 25 1350 x 75/100x 25
Length of cut in one stroke (mm) 1250 2500 3000 4000
No. of Strokes per minute (mm) 30 28 26 26
Power Required (HP/1440 x rmp) 7.5/10/15/20/25 10/15/20/25/30 15/20/25/30/35 15/20/25/30/40
Floor Area (app.) L X W X H (mm) 2700 x 2000 x 2200 3200 x 2000 x 2200 3700 x 2100 x 2300 5000 x 2100 x 2300
