Shaper

To meet with the diversified specifications of our clients we offer an extensive range of Shaper Machines. These Shaper Machines are very sturdy in construction and are widely known for their superb performance. Our Machines are very easy to operate and needs very less maintenance cost. Our Shaper Machine's base is finely ribbed which offer high stability and offer easy fitting with foundation bolts. The ram slides fitted in these Shaper Machines are properly aligned to utilize the maximum power generated and these rams have heavy cross section which minimizes cutting stress.

Technical Specifications:

Particulars
Stroke
Size 18" 24" 30" 36" 40"
Length of RAM 40 53 60 67 79
Working Stroke 18 24 30 36 40
Ram bearing in Col. 27 36 38 42 45
Ram bearing in Width 9½ 11½ 12 12½ 14
No. of Speed 3 4 4 4 4
Max. Dis. from table 10 Ram 14 17 16 2 2
Motor Recommended 2 H.P. 3 H.P. 5 H.P. 5 H.P. 5 H.P.

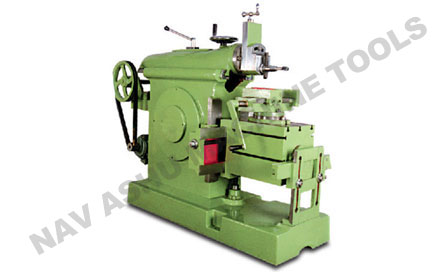

V-Belt Shaper Machine

All Geared Shaper
